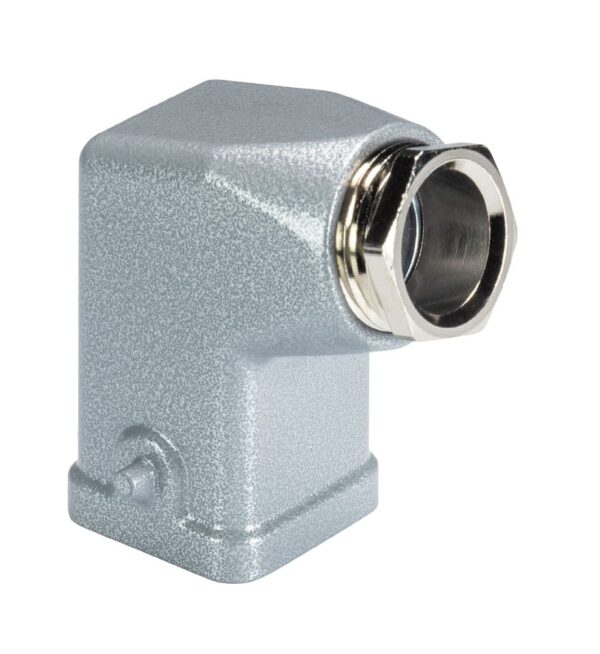

Wieland Revos MINI Connectors
Heavy duty connectors specifically designed for use in especially tough environment conditions.
The main areas of use are the automotive industry, in packaging machinery and equipment, as well as for instrumentation, control and automation equipment.
They permit simple and time-saving installation of machinery and equipment.
Their housings protect against mechanical impact and prevent entry of spray water and dust. The system‘s sub-assemblies can undergo a quality check in house, which simplifies installation and commissioning at their end use location.
Technical Specifications
| Connection Technologies | Screw, crimp |
| Rated Current | Up to 16 A |
| Rated Voltage | Up to 690 V |
| Number of Poles | 3 to 12 |
| Contact Surface | Tin, silver, gold |
| Protection Rating | Up to IP65 |
- Screw, spring-clamp, push-in and crimp connection options for all connectors
- Different housing sizes from 3 to 50
- Housings in low and high profile designs available
- 2 to 216 pole contact inserts
- Various housing locks
