| Attribute | Value |
|---|---|
| Reset Options: | External Proving / reset Connection |
| Construction: | Grey Polycarbonate, Blue Terminals |
| Indication: | LED’s for Power, Run & Fault. Guard Status LED |
| IP Rating: | Housing IP40, Terminals IP20 |
| Mounting: | 35mm DIN Rail |
| Supply Voltage Options: | 24VDC / 24VAC / 110VAC / 230VAC |
| Power Consumption: | 6VA |
| Safety Output: | 2 Normally Open |
| Safety Output Rating: | 2A/240VAC / 2A 30VDC |
| Coding: | Electronic, Generic code |
| Input: | 5 to 8 Electronic Safety Switches |
| Dimensions of Control Unit (mm): | 150 x 75 x 110mm |
| Operating Temperature: | 0°C to 45°C |
| Storage Temperature: | -20°C to 50°C |
- info@venusautomations.com.au
INTERESTED IN A PRODUCT OR SERVICE?
Contact Now - We Respond Fast
- Monday – Friday: 8:30am to 5pm

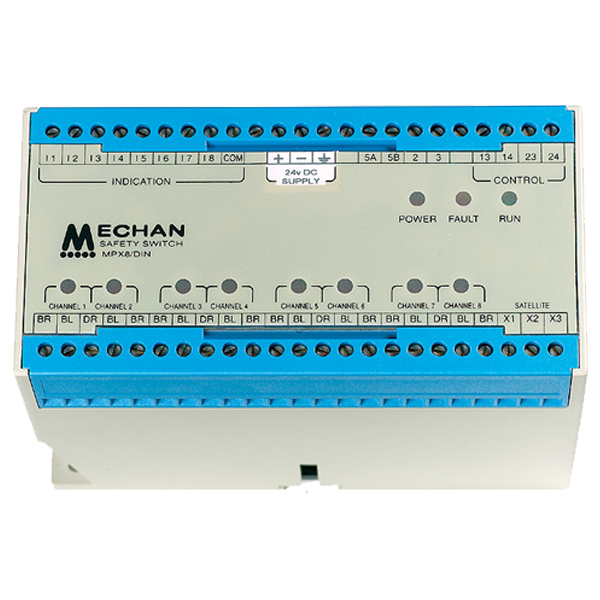

Mechan 302.001 | MPX8/DIN 24VAC SAFETY CONTROL UNIT
