| ITEM NUMBER | PRODUCT PART NUMBER | SUPPLY VOLTAGE (DC) | CONTACTS |
|---|---|---|---|

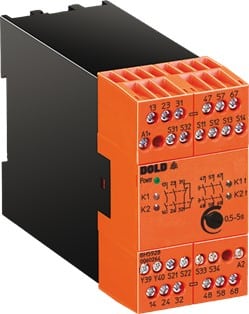

| 0049014 | BH5928.93/61 | 24V | 3 NO contacts, 3 NO contacts delayed |
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Cat. / PL: | 4/e |
| SIL CL: | 3 |
| Max supply voltage: | 24 V DC |
| Suited as safety gate monitor: | Yes |
| Channel: | 1, 2 |
| Cross fault detection: | Yes |
| Connection: | Pluggable screw terminals |
| Housing protection std: | IP 40 IEC/EN 60529 |
| Terminals protection std: | IP 20 IEC/EN 60529 |
| Weight: | 400g |
